MT15

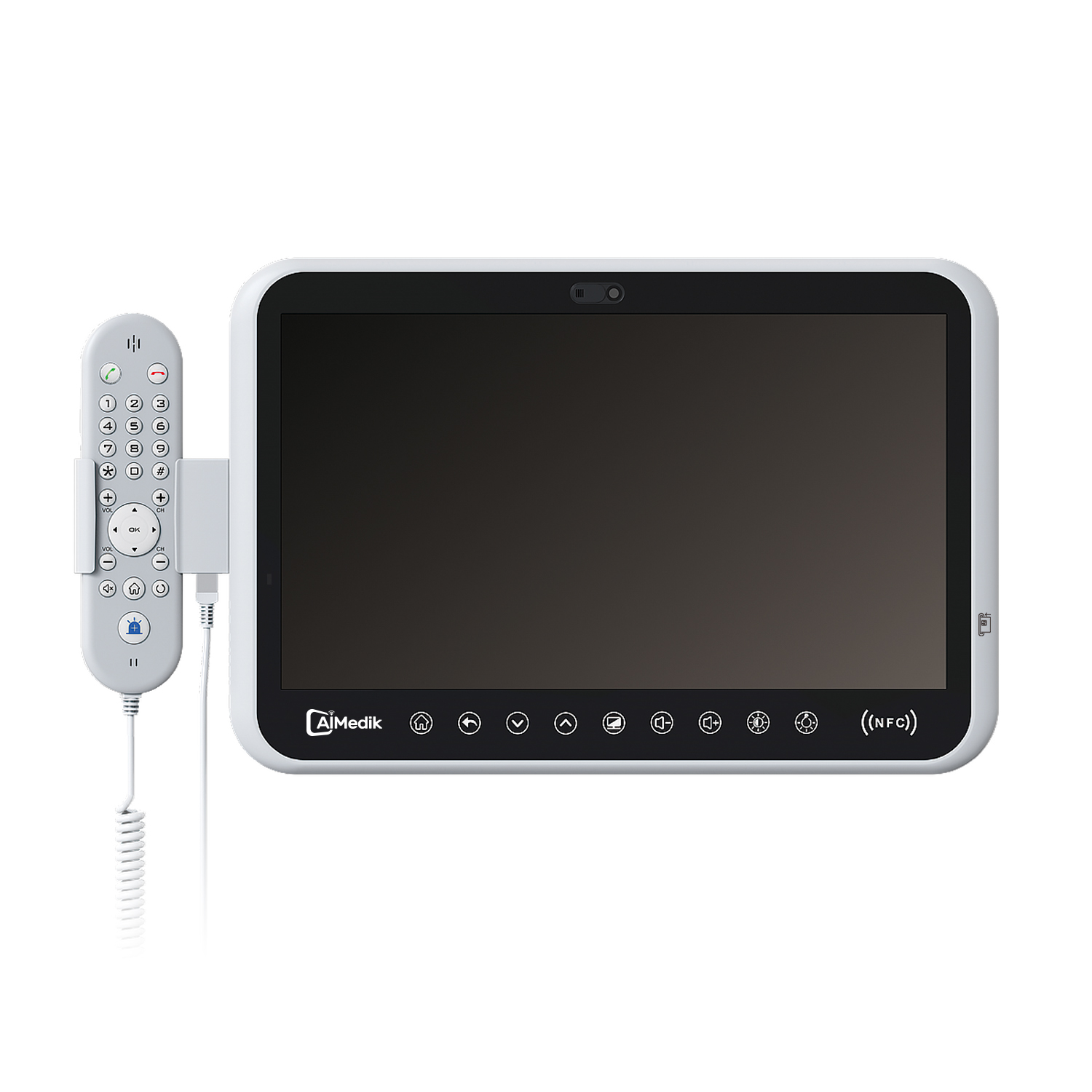

15.6″ Bedside Infotainment Terminal

The bedside infotainment terminal is designed for the hospital and clinical environment. It integrates a computer, television, phone and nurse call button into a single, easy-to-use, touch-screen product that provides patients with entertainment, communication, self-service and education options. It‘s also capable of managing clinical records from the bedside in real time, visual control from the nursing station or communication and attention with doctors in wards, hospitals.

- 15.6 " 1920 X 1080 IPS LCD

- 10-point capacitive multi-touch screen, with anti-bacterial antiviral, alcohol, support gloves touch

- Anti-bacterial housing, IP65 front panel

- High-performance Qualcomm processor (ARM KryoTM260 processor, Octa-core 64bit)

- Android 13, 4G RAM +64G Flash (8G+128G is optional)

- Handset for service call, key buttons and remote control (optional)

- Built-in 16 MP X COMOS camera & reading light

- Support WIFI, Bluetooth 5.0, 4G Module (optional), RFID/NFC reader (optional)

- With COM, Earphone, type C, LAN ports, HDMI in, POE+ (optional)

- Comply with IEC60601-1, EN60601-1, ISO22196, CE, FCC

Description

Specifications

Accessories

Download

SUPPORT

GLOVES TOUCH

The touch screen supports medical staff to operate with wet hands or a wide range of gloves, such as medical rubber gloves, latex gloves, PVC gloves and cotton gloves. No need to remove your gloves.

IP 65

RATING

The front panel of the device complies with IP65 rating, making it easy to clean with antibacterial detergent to maintain hygiene and to prevent screen pollution.

TELECONSULTATION

With a 16MP front camera, patients can use the device to have a live meeting with doctors.

It allows the doctors to keep track of the patients' condition even if they aren't with patients.

And the slideable camera cover can protect patients' privacy.

PROJECTION

To keep the entertainment versatile, this bedside infotainment terminal gives the mobile phone

a wireless method of video transmission. Project the screen to switch to a larger screen and

enjoy more viewing pleasure. It can also be used to connect other mobile devices via HDMI.

BEDsIDE INFOTAINMENT

HAEMODIALYSIS MACHINE

MEDICAL TROLLEY

DENTAL EQUIPMENT

Seciflcations

SYSTEM	Processor	Qualcomm ARM KryoTM260 processor, Octa-core 64bit
	Graphic	Adreno TM 610
	RAM	4G DDR4 (default) / 8GB (optional)
	ROM	64G UFS (default) / 128GB (optional)
	OS	Android 13
	Video	Encoding:4K@30fps,H.264P8; Decoding:4K@30fps, H.264P8P9, 1080p@30fps, MPEG-2
	Audio	EVRC, EVRC-B, EVRC-WB, G.711, G.729AAB, GSM-FR, GSM-EFR, GSM-H, AMR-NB, AMR-WB, AMR-eAMR, AMR-BeAMR
DISPLAY	LCD panel	15.6",IPS
	Resolutions	1920(H)x1080(V)
	Brightness	250cd/㎡
	Contrast Ratio	800:1
	View Angle (°)	85/85(L/R),85/85(U/D)
	Touch Panel	Sensitive 10-point capacitive touch screen
FUNCTION	WiFi	IEEE 802.11 a/b/g/n/ac; 2.4GHz/5GHz
	Bluetooth	Bluetooth 5.0
	3G/4G	Support (optional)
	RFID	Combo smart card reader & Mifare RFID (optional)
	Camera	16 MP CMOS front camera
	Handset	Full-function handset with remote control (optional)
	Speaker	4Ω/3W x 1
	Sensor	Light Sensor
	Function Key	Brightness, Home, Return, Channel-, Channelt, Backlight, Vol, Volt, Lamp
USER INTERFACE	I/O Ports	Earphone Jack x 2
		Handset Jack x 1
		USB HOST 2.0 x 2
		USB-C x 1
		Micro SD Card Slot x 1
		Nano SIM Card Slot x 1
		RJ45 100M x 1 (POE+, 25W, optional)
		HDMI In x 1
		RS232 x 1
		Internal Microphone x 1
OTHER	DC In	9-36V DC
	Power Consumption	≤18W
	Operating Temp.	0°C to +50°C
	Storage Temp.	-20°C to +60°C
	Dimensions(LWD)	399.7 x 268.3 x 39 mm
	Weight	1.8kg (without handset);2.3kg (with handset)
ACCESSORIES	Standard	Power Adaptor
ACCESSORIES	Optional	Handset
CERTIFICATION	IEC 60601-1,EN 60601-1,CE,FCC
CERTIFICATION	ISO 22196
