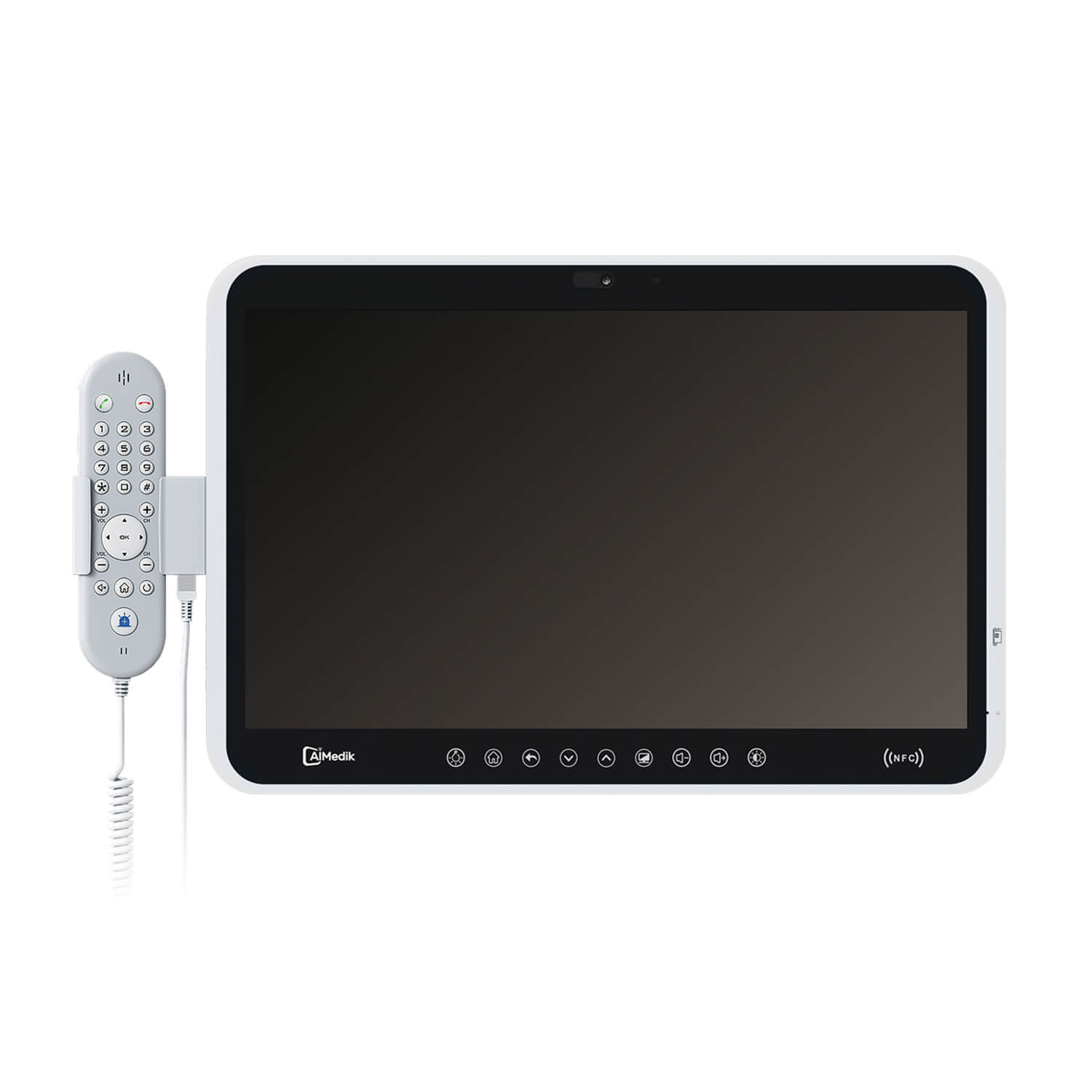

MT21
21.5″ Bedside Infotainment Terminal

The bedside infotainment terminal is designed for the hospital and clinical environment. It integrates a computer, television, phone and nurse call button into a single, easy-to-use, touch-screen product that provides patients with entertainment, communication, self-service and education options. It‘s also capable of managing clinical records from the bedside in real time, visual control from the nursing station or communication and attention with doctors in wards, hospitals.

21.5" 1920×1080 IPS LCD
10-point capacitive multi-touch screen, with anti-bacterial antiviral, alcohol, support gloves touch
Anti-bacterial housing, IP65 front panel
High-performance Qualcomm processor (ARM Kryo™260, Octa-core 64bit)
Android 13, 4 GB RAM + 64 GB Flash (8 GB+128 GB optional)
Handset for service call, key buttons and remote control (optional)
Built-in 16 MP X COMOS camera & reading light
Support WiFi, Bluetooth 5.0, 4G Module (optional), RFID/NFC reader (optional)
Ports: COM, Earphone, Type-C, LAN, HDMI-in, PoE++ (optional)
Certifications: IEC 60601‑1, EN 60601‑1, ISO 22196, CE, FCC

Description

Specifications

Accessories

Download

SUPPORT GLOVES TOUCH
TELECONSULTATION
ANTI-BACTERIAL HOUSING

The bedside infotainment terminal is designed for the hospital and clinical environment. Considering its special usage environment, the terminal is equipped with an IPS LCD panel, a special 10-point capacitive touchscreen with anti-bacterial, antivirus, anti-alcohol wipe and supporting gloves touch, anti-bacterial plastic housing and healthcare certified components.

_____________________________________________________________

21.5 inch 1920x1080 IPS LCD
10-point capacitive touch screen with anti-bacterial, antivirus,
anti-alcohol wipe and supporting gloves touch
High-performance Qualcomm processor (ARM KryoTM260 processor, Octa-core 64bit)
Optional handset for service call, key button and remote control
Built-in 16MP CMOS camera
Optional Power over Ethernet, supporting PoE++
Wi-Fi and Bluetooth 5.0
Optional 4G Cellular Network
Optional NFC/RFID reader

SUPPORT

GLOVES TOUCH

The touch screen supports medical staff to operate with wet hands or a wide range of gloves, such as medical rubber gloves, latex gloves, PVC gloves and cotton gloves. No need to remove your gloves.

IP 65

RATING

The front panel of the device complies with IP65 rating, making it easy to clean with antibacterial detergent to maintain hygiene and to prevent screen pollution.

TELECONSULTATION

With a 16MP front camera, patients can use the device to have a live meeting with doctors.

It allows the doctors to keep track of the patients' condition even if they aren't with patients.

And the slideable camera cover can protect patients' privacy.

PROJECTION

To keep the entertainment versatile, this bedside infotainment terminal gives the mobile phone

a wireless method of video transmission. Project the screen to switch to a larger screen and

enjoy more viewing pleasure. It can also be used to connect other mobile devices via HDMI.

BEDsIDE INFOTAINMENT

HAEMODIALYSIS MACHINE

MEDICAL TROLLEY

DENTAL EQUIPMENT

Specifications

SYSTEM	Processor	Qualcomm ARM KryoTM260 processor, Octa-core 64bit
	Graphic	Adreno TM 610
	RAM	4G DDR4 (default)/8GB (optional)
	ROM	64G UFS (default)/128GB (optional)
	OS	Android 13
	Video	Encoding:4K@30fps,H.264P8; Decoding:4K@30fps, H.264P8P9, 1080p@30fps, MPEG-2
	Audio	EVRC, EVRC-B, EVRC-WB, G.711, G.729AAB, GSM-FR, GSM-EFR, GSM-H, AMR-NB, AMR-WB, AMR-eAMR, AMR-BeAMR
DISPLAY	Resolutions	1920(H)x1080(V)
	LCD Panel	21.5”, IPS
	Brightness	500cd/㎡
	Contrast Ratio	1000:1
	View Angle(°)	89/89(L/R), 89/89(U/D)
	Touch Panel	Sensitive 10-point capacitive touch screen
FUNCTION	WiFi	IEEE 802.11 a/b/g/n/ac 2.4/5GHz
	Bluetooth	Bluetooth 5.0
	3G/4G	Support (optional)
	RFID	Combo smart card reader & Mifare RFlD (optional)
	Camera	16MP CMOS front camera
	Handset	Full-function handset with remote control (optional)
	Speaker	6Ω/2Wx 2
	Sensor	Light Sensor
	Function Key	Brightness, Home, Return, Channel-, Channelt, Backlight, Vol, Volt, Lamp
INTERFACE	l/O Ports	Earphone Jack x 2
		Handset Jack x 1
		USB HOST 2.0 x 2
		USB-C x1
		Micro SD Card Slot x 1
		Nano SlM Card Slot x 1
		HDMl In x 1
		RS232 x1
		Internal Microphone x 1
		RJ45 100M x1(PoE++, 60W, optional)
		GPS x1 (Optional)
OTHER	Power Consumption	≤28W
	Dc In	9-36V DC
	Operating Temp.	0°C to +50℃C
	Storage Temp.	-20°C to +60°C
	Dimensions(LWD)	533.9 x 349.4 x 45.5 mm
	Weight	4.6kg (without handset); 5.1kg (with handset)
	Certifications	IEC 60601-1,EN 60601-1,CE,FCC, ISO 22196
