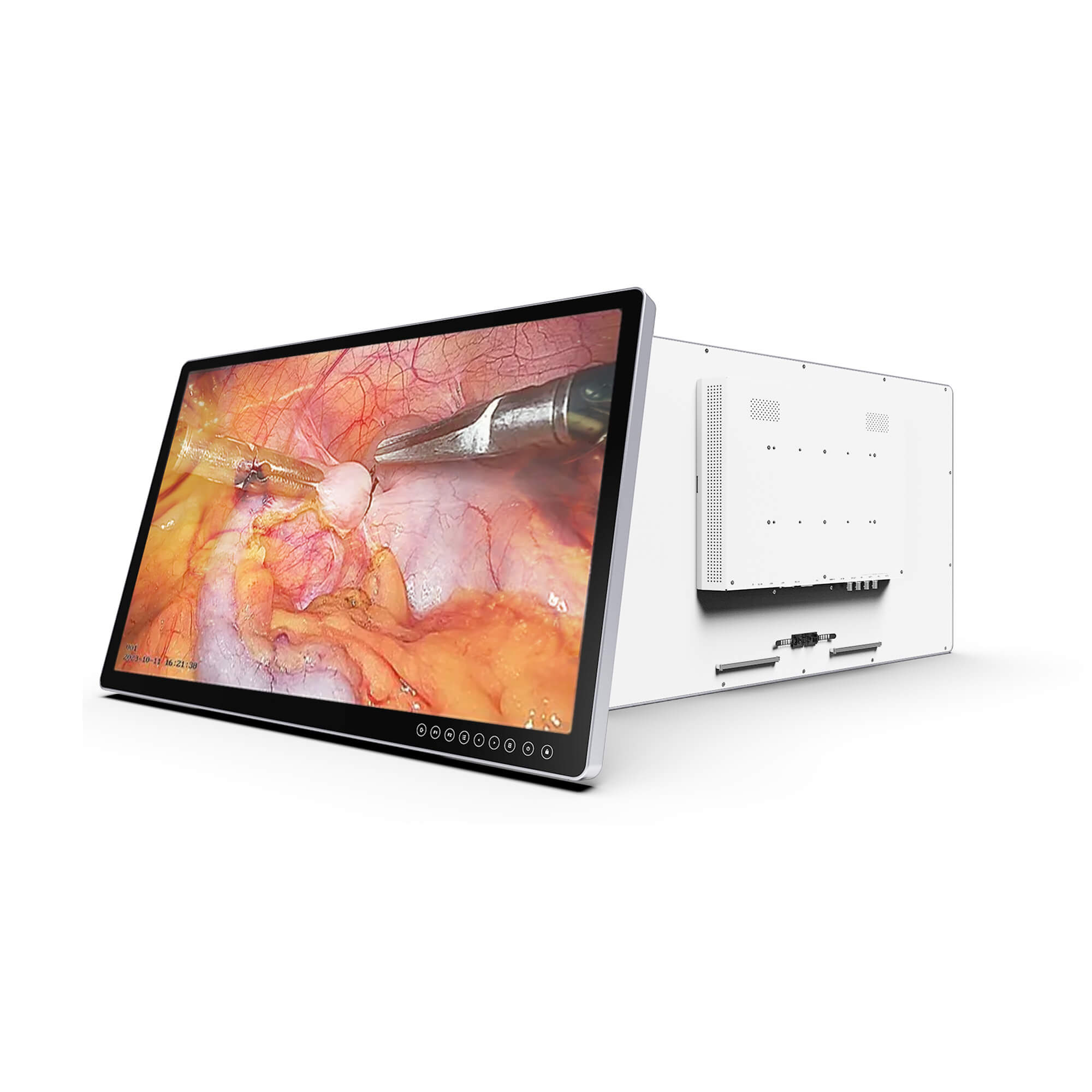

MD31
4K Ultra HD Medical Surgical Display

MD31 is a 31.5" 4K surgical monitor for endoscopy and surgery, with accurate color reproduction, clear contrast and vivid video images, providing surgeons and operating staff with real-time, accurate color images. Antibacterial housing and optical bonding technology are easy to clean and disinfect. A variety of video input andoutput interfaces can accommodate video signals from various medical imaging sources to meet the requirements of various applications in the operating room.

Optical bonding process, anti-glare glass panel
Anti-reflective, anti-fingerprint coating
4K (3840x2160) resolution, 10 bit LCD panel
REC709 & BT.2020 4K compatible, support HDR display
Color calibration gamma 1.8 - 2.6, compliant with DlCOM Part 14
Multiview display (Dual screen / PlP / PBP / Quad-Split)
Optional high-sensitivity touch (Supports alcohol / glove touch)
IP54 rating for front panel
DP daisy chain output
Support image rotation and mirroring
12G-SDl video signal input and loop-through

Description

Specifications

Accessories

Download

AUTO INPUT SELECT MODE
AUTOMATICALLY IDENTIFIES

When the input signal is interrupted due to system error or other external interference, the device will automatically switch to other input signal modes.

COLOR CORRECTION
WIDE COLOR GAMUT & HDR

Adopts 10-bit color depth screen which supports 1.07B colors, bringing wide color space and calibration contents. It compliant with DICOM Part 14 & Gamma 1.8-2.6.

MULTIVIEW DISPLAY
ADJUST THE SPECIFIED SIGNAL SOURCES

Support dual screen / quad-split / picture in picture / picture by picture. In multiview mode, image settings can be made for the selected signal. (e.g. GAMMA 1.8-2.6 or DICOM preset mode).

UTO INPUT SELECT MODE
AUTOMATICALLY IDENTIFIES

When the input signal is interrupted due to system error or other external interference, the device will automatically switch to other input signal modes.

IP54 FRONT PANEL
WATER-PROOF AND DUST-PROOF

The water-proof and dust-proof capability of the front panel makes it easy for users to clean the monitor with alcohol or water during use.

CABLE SHIELD
HYGIENIC AND SAFE

The cleaning solution is not easily in contact with the interface to avoid short circuits or corrosion. It also constrains the distribution of cables, preventing them from cluttering and falling out.

OTHER FUNCTIONS
DIVERSIFICATION FOR MONITOR VIEW

In complex medical applications, in addition to providing premium color quality, the monitor's capabilities offer options for different monitoring methods.

RELATED APPLICATIONS

MICROSURGERY / ENDOSCOPY

Specifications

DISPLAY	Panel	31.5" 10 bit
	Physical Resolution	3840 x 2160
	Viewing Area	697.3056(H)mm x 392.2344(V)mm
	Pixel Pitch	0.18159(H)mm x 0.18159(V)mm
	Aspect Ratio	16:9
	Brightness	350 cd/㎡
	Contrast	1000:1
	Viewing Angle	178°H / 178°V
	Light Source	LCD
	Coating	Anti-reflective, anti-fingerprint
	Gamma	Native / 1.8 / 2.0 / 2.2 / 2.4 / 2.6 / DICOM
	Color Calibration	BT.709 / BT.2020
	Lifetime	30000h
	Response Time	≤14ms
INTERFACE	Power	DC x1
	Software Upgrade	USB x1
	Control	LAN x1
	Control	RS232 x1
	Signal Input	12G-SDI x2
		DP x1
		HDMI2.0 x1
		DVI x1
	Signal Output	12G-SDI x2
	Signal Output	DP (MST) x1
MENU	Function Key	POWER, INPUT, MENU, , EXIT, F1 (PIP),F2 (Gamma), LOCK
MENU	Menu Language	Chinese / English
POWER	Input Voltage	15V
POWER	Power Consumption	≤60W
ENVIRONMENT	Operating Temperature	0°C-50°C
ENVIRONMENT	Storage Temperature	-20°C-60°C
OTHER	Dimension(LWD)	747.4mm x 464mm x 64.5mm
	Weight	12kg
	Certification	IEC 60601-1、EN 60601-1
