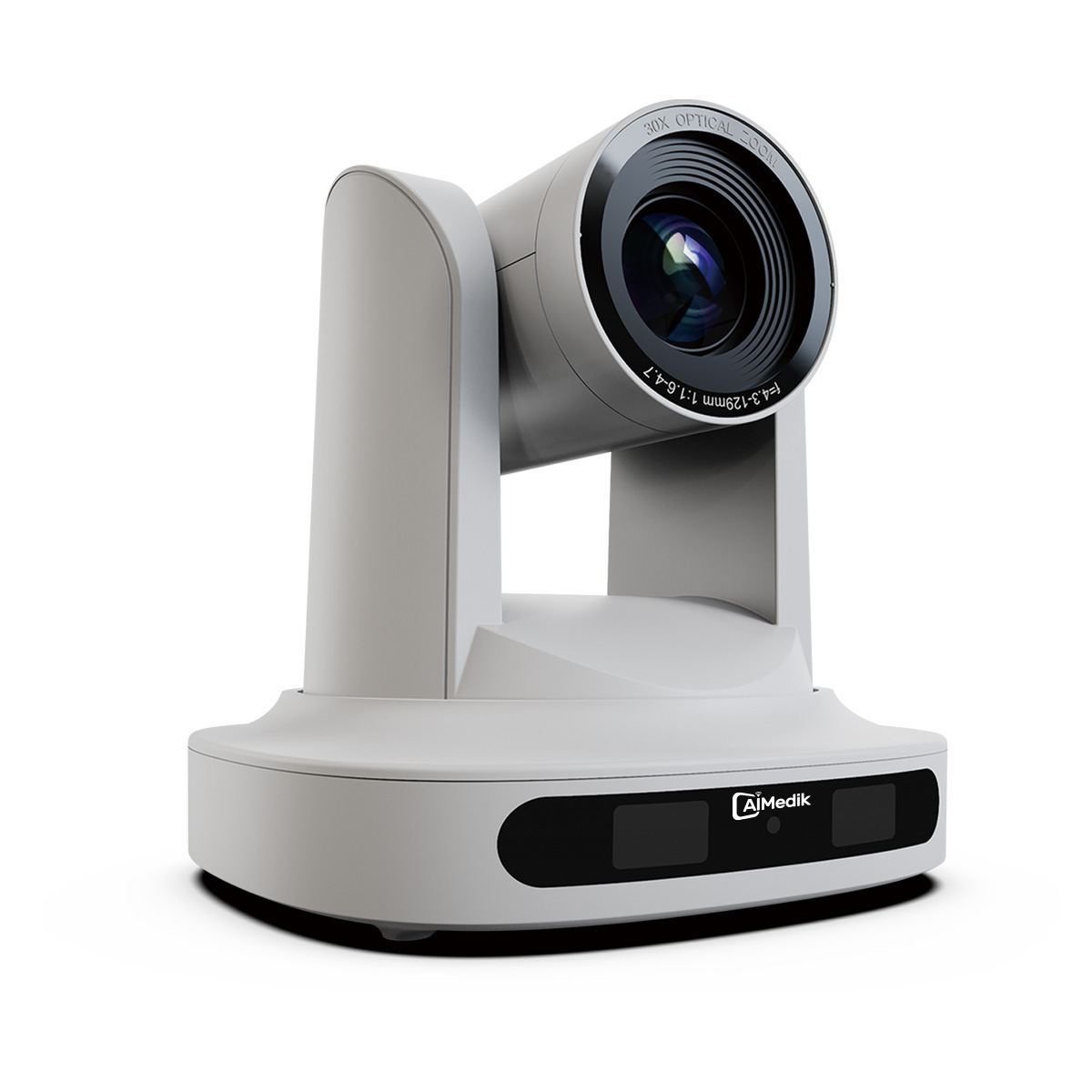

AP20/AP30
Full HD PTZ Camera 20X/30X

FULL HD PTZ camera is a medical-grade camera that can be used in hospital environments such as Tele-ICU patient monitoring, telehealth conferencing, etc. Equipped with a 1/2.8″ HD CMOS sensor and 20X/30X optical zoom to ensure accurate image reproduction, medical staff can remotely control the Pan Tilt Zoom of the camera through an IR remote control or computer, allowing to observe patients from different angles and distances and maintain close contact. Equipped with a variety of push streaming protocols to provide support for telehealth conferencing.

Cross protocol mix-control with IP/ RS-422/ RS-485/ RS-232
1/2.8" HD CMOS Sensor,20X/30X Optical Zoom
HDMI & 3G-SDI Video Output, PoE Power
RS-232/RS-485 Serial Control, Cascading
Streaming Protocols: RTSP, RTMP, SRT & NDIHX(optional)
Control Protocols: Onvif, VISCA over IP, VISCA, PELCO-D/P
Tripod, Wall & Ceiling Mounting

Description

Specifications

Accessories

Download

Multiple Outputs

The PTZ camera includes various interfaces. SDI, HDMI, IP outputs allow users to output an up to FHD 1080p signal simultaneously. The LAN port supports Power Over Ethernet (PoE), NDI|HX 5.0 (optional) and IP streaming via RTSP, RTMP protocols.

If offers an audio line-in for NDI/IP streams.

Users can control the PTZ camera easily via LAN port or RS232/RS485 serial port.

Zoom Lens Optional

Provides 20x/30x optical zoom lens for effective close-up and wide-angle shooting. Quick pan and tilt speeds and picture controls like brightness, color, saturation, contrast, sharpness provide precision control of your images.

A Variety of Installation

Support image flip function, the bottom thread of the camera can be used for mounting suitable for tripod mounting wall mounting, ceiling mounting. Widely used in many applications in telehealth conferencing, tele-ICU patient monitoring and other fields.

Easily Control

The PTZ camera can be easily controlled by IR remote control, Web Ul as well as the joystick camera controller via IP or serial port. Multiple control protocols are supported including ONVIF, VISCA over IP, VISCA, PELCO-D, PELCO-P.

Specifications

MODEL NO.		AP20	AP30	AP20-NDI	AP30-NDI
INTERFACES	Video Out	SDI, HDMI
	LAN Port	IP Streaming: RTSP/RTMP/SRT
		POE	POE	POE&NDI丨 HX	POE&NDI丨 HX
	Audio Input	3.5mm audio (Line-level)
	Control Interface	RS-232 In and Out, RS485 In
	Control Protocol	Onvif, VISCA over IP/ VISCA/ Pelco-D/P
	Video Format	HDMI/ SDI Video up to 1080P60
CAMERA PARAMETERS	Optical Zoom	20×	30×	20×	30×
	Focal Length	F=5.5~110mm	F=4.3~129mm	F=5.5~110mm	F=4.3~129mm
	View Angle	3.3°(tele)	2.34°(tele)	3.3°(tele)	2.34°(tele)
		54.7°(wide)	65.1°(wide)	54.7°(wide)	65.1°(wide)
	Aperture Value	F1.6 ~ F3.5	F1.6 ~ F4.7	F1.6 ~ F3.5	F1.6 ~ F4.7
	Sensor	1/2.8 inch, High quality HD CMOS sensor
	Effective Pixels	16: 9, 2.07 Megapixel
	Digital Zoom	10×
	Minimum Illumination	0.5Lux (F1.8, AGC ON)
	DNR	2D & 3D DNR
	SNR	>55dB
	White Balance	Auto/ Manual/ One Push/ 3000K/ 3500K/ 4000K/ 4500K/ 5000K/ 5500K/ 6000K/ 6500K/ 7000K
	WDR	OFF/ Dynamic level adjustment
	Video Adjustment	Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
	Other Camera Parameters	Auto Focus, Auto Aperture, Auto Electronic Shutter, BLC
PTZ PARAMETERS	Rotation Angle	Pan: ±170°, Tilt: -30°~+90°
	Rotation Speed	Pan: 60°/sec (Range: 0.1 -180°/sec), Tilt: 30°/sec (Range: 0.1-80°/sec)
	Preset Number	255 presets (10 presets by remote controller)
OTHERS	Input Voltage	DC12V±10%
	Input Current	1A (Max)
	Consumption	12W (Max)
	Temperature	Working Temperature: -10~+50°C, Store Temperature: -10~+60°C
	Working Humidity	Working Humidity: 20~80% RH (no condensation), Store Humidity: 20~95% RH (no condensation)
	Dimension	170×170×180.31mm
	Weight	Net weight: 1.25kg; Gross weight: 2.1kg
	Accessories	Power Supply, RS232 Control Cable, Remoter, Manual
	Installation Methods	1/4 inch tripod hole; Bracket installation for Optional
